When it comes to food retail, keeping products is essential for food safety, product quality, and customer trust. Coilmaster has been delivering dependable, high-performance refrigerated case coils for decades. We’re trusted by supermarkets and convenience stores across the country to keep shelves stocked and food fresh. Whether you’re supporting new store builds or replacing aging systems, you can count on our coils perform flawlessly every time.
Why Coilmaster for Supermarkets?
Coilmaster refrigerated case coils are trusted by supermarkets across the country to provide dependable, precise cooling where it matters most.
Built for performance
Our refrigerated case coils are engineered to maintain stable temperatures and support critical food safety standards.
Custom-fit designs
Select the fin spacing, tube diameter, and coil configuration that integrates seamlessly into your case design.
Guaranteed 15-day lead times
Fast, reliable delivery helps minimize downtime and keep shelves stocked.
Durability you can count on
High-quality materials and rigorous testing ensure long-term performance in demanding retail environments.
Field support when you need it
Our nationwide network of representatives is ready to help with on-site measurements, replacements, and installation guidance.
How Do Supermarket Refrigeration Systems Work?
Supermarket refrigeration systems remove heat from refrigerated spaces to maintain the temperatures required for fresh, chilled, and frozen products. Depending on the store, a commercial refrigeration system may include compressors, refrigerated display cases, evaporator coils, condensers, piping, controls, and expansion devices working together.
Large grocery stores often use centralized direct-expansion systems with multiple compressors operating in parallel, while smaller stores may rely on distributed or self-contained equipment. The right configuration depends on store size, cooling loads, refrigerant requirements, available space, and long-term operating goals. In every case, efficient heat transfer is essential: evaporator coils absorb heat from the refrigerated space, and condensers reject that heat from the system.
Parallel Rack Refrigeration Systems for Grocery Stores
Parallel rack refrigeration systems use multiple compressors connected to shared suction and discharge lines. Compressors can stage on or off as demand changes, helping the system serve several refrigerated cases, coolers, and freezers at once. This approach is common in larger supermarkets because it supports multiple cooling loads and provides redundancy if one compressor is unavailable.
Distributed systems place smaller refrigeration units closer to the equipment they serve. Shorter piping runs can reduce refrigerant charge in some applications. Store layout, climate, maintenance needs, energy goals, and lifecycle cost should all factor into system selection.

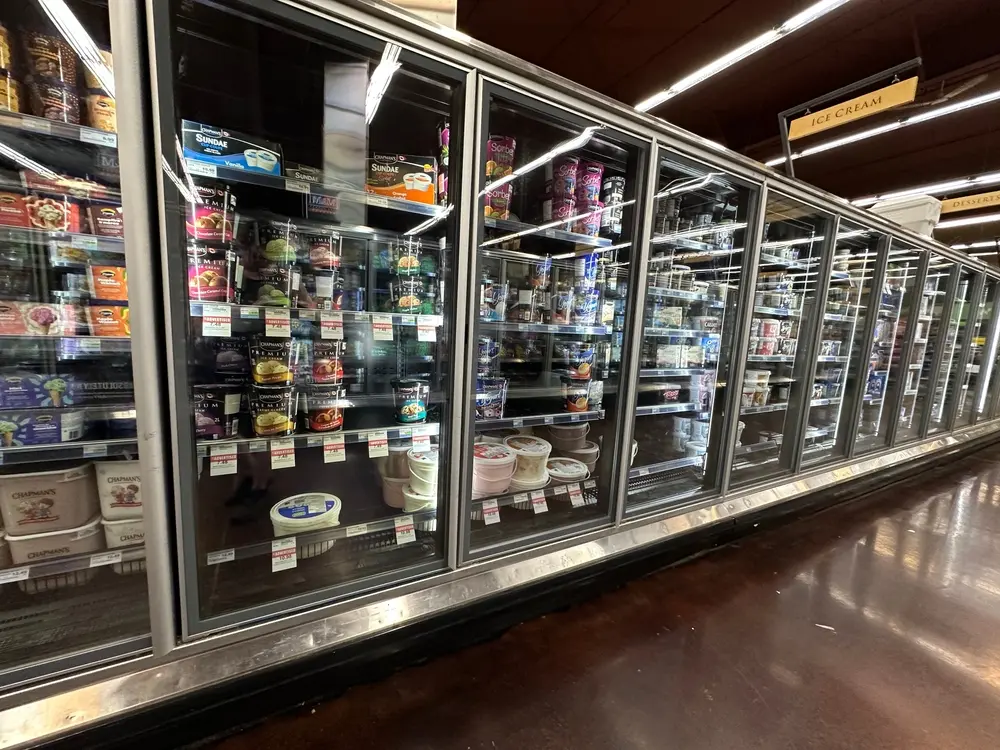

Refrigeration for Display Cases and Food Retail Applications
Different supermarket departments create different refrigeration demands. Meat, dairy, produce, beverages, prepared foods, frozen foods, and walk-in storage may each require different operating temperatures and capacities.

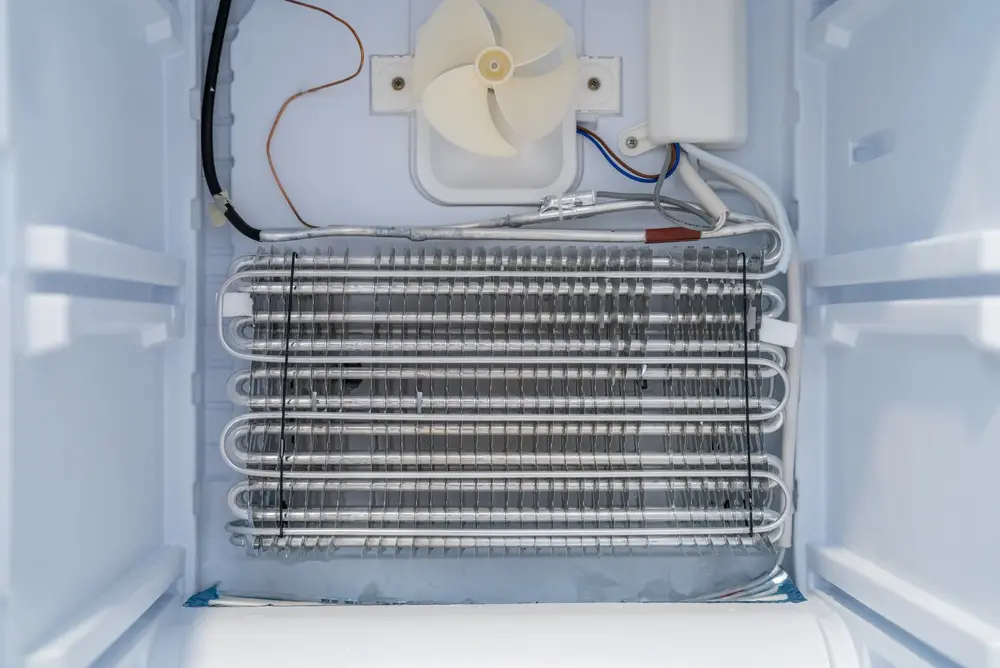

Refrigerated display cases depend on properly selected coils to remove heat and maintain consistent conditions. Coil selection should account for airflow, capacity, refrigerant, circuiting, physical dimensions, connection locations, and pressure drop. Coilmaster manufactures refrigerated case coils for food retail and commercial refrigeration applications, with custom configurations for new OEM equipment and replacement projects.
Key Components of Commercial Refrigeration Systems
Compressors move refrigerant through the system, evaporator coils absorb heat, condensers reject heat, and controls regulate operation as cooling loads change. Because these components work together, a mismatched coil or condenser can limit overall system performance even when the rest of the equipment is operating correctly.
For refrigerated display cases, custom coil design may involve fin spacing, tube diameter, refrigerant circuiting, connection arrangements, casing configuration, and condensate management. Replacement projects also require accurate dimensions and operating data so the new coil can fit within the existing equipment and meet the required capacity.
Remote Air-Cooled Condensers for Supermarket Refrigeration
Heat rejection is another critical part of supermarket refrigeration systems. Coilmaster’s remote air-cooled condensers are designed for refrigeration and air-conditioning applications, including supermarkets.
The Summit line can be circuited for multi-compressor systems and configured with fan cycling, VFD-controlled fans, or integration with existing controls. These options can support both new installations and condenser replacement projects where equipment must match specific performance and footprint requirements.
Energy Efficiency and Refrigerant Considerations
Refrigeration can represent a major share of a supermarket’s energy use, so component selection and controls matter. Airflow, heat-transfer surfaces, condenser performance, compressor operation, refrigerant choice, and system controls all influence efficiency.
Modern commercial refrigeration systems may use electronic expansion valves, variable-speed equipment, monitoring systems, and heat-recovery strategies to better match operation to actual demand. Refrigerant selection is also increasingly important as regulations encourage lower-global-warming-potential options. CO2 has a GWP of 1 and an ODP of 0, while other systems may use HFO/HFC blends or hydrocarbons such as R290. Refrigerant choice should always be evaluated alongside equipment compatibility, safety, climate, and applicable regulations.
Custom Coil Design for Supermarket Refrigeration Systems
New construction, remodels, replacement projects, and space-constrained installations can all require custom heat-transfer equipment. A refrigeration coil may be specified around capacity, face dimensions, airflow, refrigerant, tube size, fin configuration, circuiting, connections, and allowable pressure drop.
Coilmaster supports custom coil selection with engineering resources and EZ Coil® software, which helps users evaluate performance, circuiting, fin designs, drawings, and operating conditions. This allows coils to be developed around actual application requirements rather than forcing a standard product into a custom system.
New Installations and Replacement Refrigeration Coils
New supermarket projects require coordination between refrigerated cases, system loads, controls, available space, and heat-rejection equipment. Replacement projects have a different priority: matching an existing coil or condenser closely enough to restore performance without unnecessary changes to surrounding equipment.
Accurate measurements, refrigerant information, airflow, capacity, connection locations, and operating temperatures are important for replacement selection. Coilmaster’s guaranteed 15-day lead times can also help keep new-construction and replacement projects moving when refrigeration equipment is on the critical path.
Choosing a Refrigeration Coil and Condenser Partner
When evaluating a supplier, consider more than component price. Customization capabilities, engineering support, testing, manufacturing consistency, lead times, and experience with refrigeration applications all affect long-term value.
Coilmaster supports OEM and replacement applications with custom heat-transfer products, U.S.-based manufacturing, quality-control processes, and field support. For supermarket projects, that means access to refrigerated case coils and condensers designed around the application rather than a one-size-fits-all approach.
Frequently Asked Questions About Supermarket Refrigeration Systems
Which Type of Refrigeration System Is Commonly Used in Supermarkets?
Large supermarkets commonly use centralized direct-expansion systems with parallel compressor racks because one rack can serve multiple display cases, coolers, freezers, and temperature circuits. Distributed and self-contained systems are also used when store size, layout, or refrigerant-charge goals make them a better fit.
How Does a Grocery Store Refrigeration System Maintain Reliable Temperatures?
A grocery store refrigeration system transfers heat away from refrigerated areas. Refrigerant absorbs heat at the evaporator or refrigerated case coil, compressors circulate the refrigerant, and condensers reject the collected heat. Controls adjust operation as loads and temperatures change.
Can Refrigeration Coils Be Replaced Without Replacing the Entire System?
Yes. In many applications, an aging or failed coil can be replaced without replacing the full refrigeration system. The replacement must match dimensions, connections, refrigerant, airflow, capacity, and operating conditions so it can fit and perform correctly.
Custom Refrigeration Coils and Condensers from Coilmaster
Reliable supermarket refrigeration systems depend on heat-transfer equipment designed for the application. Whether you are developing new food retail equipment or replacing an existing coil or condenser, Coilmaster can help you specify a solution based on dimensional and performance requirements.
Contact Coilmaster to discuss your application or request a quote for your next commercial refrigeration project.
Featured Products for Supermarkets

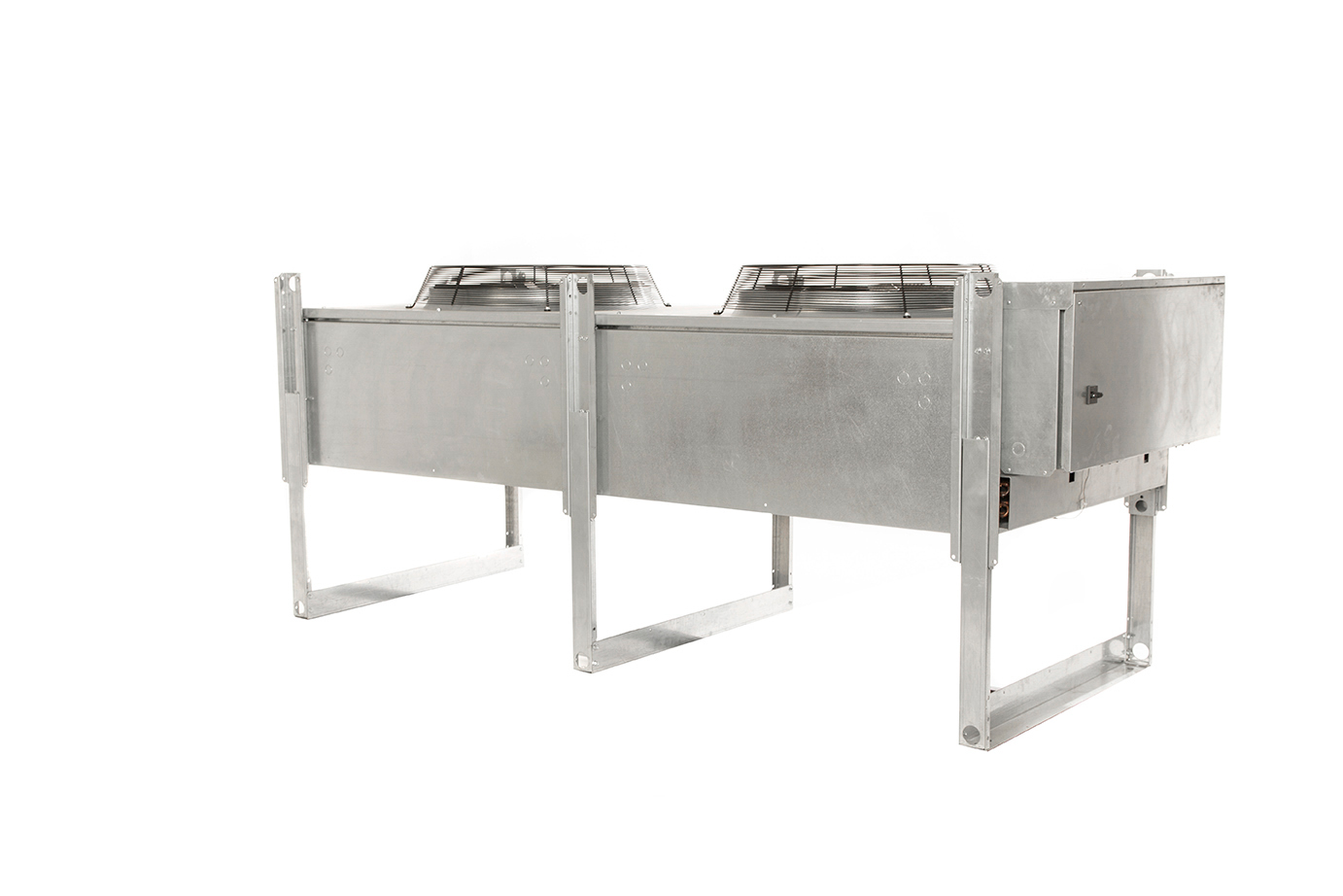

Remote Air Cooled Condensers
Coilmaster air-cooled condensers offer the flexibility to meet the requirements of any custom application. These condensers are ideal for clinics, motels, schools, apartments, office buildings, and factories.
Refrigerated Case Coils
Specifically engineered for refrigerated display cases, these coils deliver reliable performance in food retail and commercial refrigeration environments.
