Types of HVAC Coils

Coils show up in several engineered systems. Transformer coils, electromagnetic coils, solenoid coils, inductor types, high-frequency coils, and copper wire coils all help create magnetic fields, control inductive reactance, and manage coil resistance.

HVAC coils have a different job: moving heat. For heating, cooling, refrigeration, data center, and industrial systems, coils transfer energy between air and another medium, usually refrigerant, water, glycol, or steam.

In this guide, we cover the main types of coils used in HVAC systems, how they work, and how to choose the right design for performance, efficiency, uptime, and long-term reliability.

What Are HVAC Coils?

HVAC coils are heat exchangers built to transfer thermal energy between an air stream and a fluid or refrigerant circuit. Air moves across finned surfaces while refrigerant, water, glycol, or steam moves through the tubes inside the coil. The coil geometry, materials, airflow, circuiting, and surface area all shape that transfer.

Good design helps the system reach the right leaving-air temperature, manage humidity, reduce wasted fan or pump energy, and meet capacity without straining equipment. Poor design, on the other hand, creates high pressure drop, weak heat transfer, noise, frost, leaks, corrosion, and subsequent service calls.

For HVAC, the key categories are evaporator, condenser, and fluid coils. Steam coils and electric coils also have heating roles in some systems, but most commercial and industrial selection work starts with refrigerant and hydronic coils.

Evaporator Coils

Evaporator coils absorb heat from indoor air, process air, or refrigerated spaces. Warm air passes across the coil, then refrigerant inside the tubes absorbs that heat as it evaporates. When the coil surface is below the air’s dew point, moisture can condense on the coil, which helps with humidity control.

These coils are commonly seen in air handling units, rooftop units, split systems, refrigeration equipment, refrigerated cases, and industrial cooling systems. In everyday practice, evaporator design needs to account for airflow, fin spacing, refrigerant distribution, drain pan design, face velocity, part-load operation, and service access.

A coil needs to deliver capacity while avoiding excessive pressure drop, poor drainage, uneven refrigerant feeding, and freeze risk. For OEMs and replacement projects, even small dimensional or circuiting changes can significantly alter field performance.

Condenser Coils

This coil releases heat to the outside environment. After refrigerant absorbs heat at the evaporator and gains heat from compression, it enters the outdoor heat-rejection section as hot gas. Outdoor air moves across the coil, heat leaves the refrigerant, and the refrigerant then condenses back into liquid.

Condenser coils are used in outdoor HVAC units, remote air-cooled units, rooftop systems, refrigeration racks, and industrial cooling equipment. Their performance impacts head pressure, compressor workload, seasonal efficiency, and system stability during hot weather.

Selection must account for ambient temperature, refrigerant type, airflow, cabinet size, fin spacing, corrosion exposure, and cleaning access; coils that are too small or too restrictive can raise condensing temperature, reduce efficiency, and place added stress on the compressor.

Fluid Coils (Hydronic Coils)

Fluid coils use chilled water, hot water, brine, or glycol to heat or cool air (they’re also called hydronic coils). A central plant or separate fluid loop provides the medium for heating or cooling.

These coils are typically used in air handlers, hospitals, schools, laboratories, industrial plants, and data centers. They provide engineers with precise temperature control, serviceability, and flexibility across large building systems. For data centers, hydronic coils often fit larger cooling plans around airflow management, redundancy, controls, and energy monitoring.

Fluid coil selection requires close review of flow rate, fluid type, entering and leaving fluid temperatures, air conditions, freeze protection, venting, draining, and pressure drop. Glycol mixtures protect against freezing, but they also change heat transfer and pump performance.

How to Choose the Right Coil for Your Application

The right choice is all about the system. A school air handler, grocery case, rooftop unit, data center cooling system, and industrial process unit can all use coils, but they don’t deal with the same conditions.

Start by reviewing entering air temperature, leaving air target, airflow, fluid or refrigerant conditions, humidity load, pressure drop limits, cabinet dimensions, connection locations, corrosion exposure, maintenance access, and expected equipment life. For replacement coils, field measurements and photos prevent costly mistakes. And for OEM programs, early engineering review can cut back on revisions.

Common coil design challenges include incorrect sizing, poor airflow, high pressure drop, weak humidity control, drain pan issues, freeze risk, corrosion, and long supplier lead times. These tend to surface after installation, when it costs more to make changes.

Custom coil design can help when a standard catalog coil won’t stand up to the operating conditions. Coilmaster crafts heat exchangers around unique system requirements, offering options for tube, fin, casing, circuiting, coatings, and connections.

Key Performance Factors to Consider

Heat transfer efficiency showcases how well the coil moves energy between the air and the working medium. Higher efficiency helps equipment hit capacity targets with less strain and better leaving-air control.

Pressure drop impacts fan and pump energy. Excessive air-side pressure drop can force fans to work harder or reduce airflow, while excessive fluid-side pressure drop can complicate pump selection and system balance.

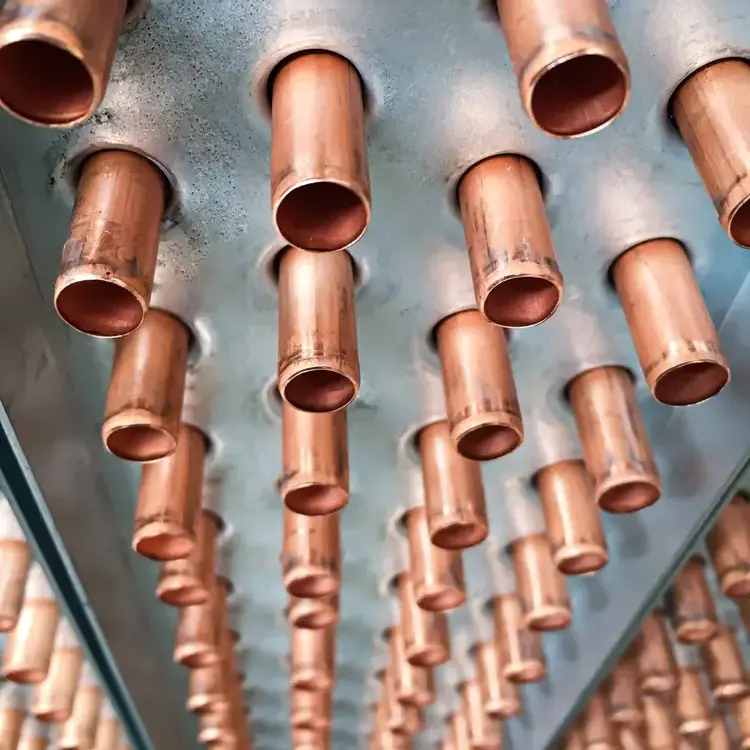

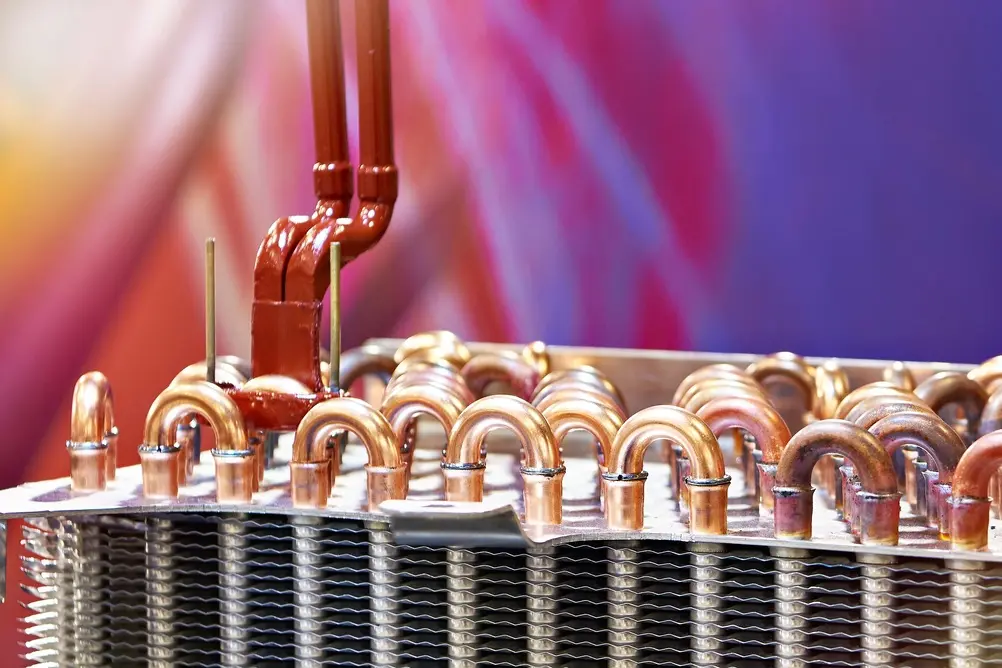

Material and construction can greatly affect durability, cost, and service life. Material decisions, such as copper tubes, aluminum fins, stainless steel casings, coated fins, heavier tube walls, and corrosion-resistant finishes, should be made to match the environment, whether dealing with coastal air or industrial contaminants.

Oval tube technology also boosts performance by reducing air-side resistance. Coilmaster’s oval tube design is built to minimize pressure drop while maintaining cooling capacity, which can control fan energy and operating costs

Lead time should always be addressed at the beginning. For OEM production, late coils can delay finished equipment, and when it comes to replacement work, a failed coil can lead to downtime, comfort complaints, product loss, or emergency costs.

Custom Coils vs. Standard Coils

Standard coils work well with straightforward applications, common dimensions, and basic replacements or systems with common geometry.

Custom coils are crafted to exact specifications. They can fit unusual footprints, connection locations, casing needs, pressure-drop limits, corrosion concerns, capacity targets, and installation constraints. Custom coil design is trusted to improve production fit, serviceability, and part consistency for OEMs.

Custom approaches leave room for coil design optimization. Teams can compare materials, rows, fin spacing, tube patterns, face area, fluid velocity, refrigerant circuiting, and coatings before production. Coil design software can then turn performance inputs into drawings, selections, and pricing info.

Coil testing should cover leak testing, pressure testing, performance modeling, dimensional checks, airflow review, visual inspection, and quality checks. Common coil performance metrics include capacity, sensible heat ratio, pressure drop, fluid velocity, refrigerant distribution, leaving-air temperature, and approach temperature. When you establish clear testing expectations, you can catch any problems ahead of shipment.

Why Coilmaster for HVAC Coil Solutions?

Coilmaster manufactures custom heat transfer products for OEM and aftermarket customers in HVAC, refrigeration, data center cooling, and industrial applications. Our product range spans evaporator, condenser, fluid, booster, refrigerated case, insulated cased, energy recovery, and remote air-cooled units.

We’re proud to be the only U.S. manufacturer of oval tube technology. That gives engineers another path to improve heat transfer performance and reduce air-side pressure drop where fan energy, footprint, and capacity require careful balance.

Coilmaster also guarantees 15-day lead times, which helps with OEM production schedules and urgent replacement needs. Fast delivery still needs to meet the spec, so we combine speed with vertically integrated manufacturing, engineering knowledge, and quality review.

Our proprietary EZ-Coil selection software helps users generate performance data, pricing, and drawings quickly. VirtuaLab adds simulation tools for circuiting, airflow distribution, refrigerants, water, glycol, steam, and other design variables.

You can also check out our Resources page for technical guides, downloads, and application information.

Choosing the Right Coil Matters

Coils might look simple from the outside, but their design impacts efficiency, comfort, humidity control, uptime, equipment life, and service cost. Making the wrong selection can lead to noise, pressure drop, capacity loss, corrosion, compressor strain, and repeat service calls.

Choosing from the main types of coils means assessing the full application; evaporator, condenser, and fluid coils each solve a different heat transfer problem. The best choices are made with operating data, clear targets, careful material choices, proven manufacturing, and dependable delivery in mind.

Coilmaster helps teams turn complex coil requirements into high-performance solutions. For OEM development, replacement projects, refrigeration systems, data centers, and industrial applications, working with the right coil partner can move a specification from a question mark to a field-ready product.
