In simple terms, heat exchangers move thermal energy from a warmer fluid or airstream to a cooler one. In most HVAC and refrigeration systems, the two media stay separate while heat passes through a metal surface such as a tube or plate.
The media can include different types of process fluids. By moving heat where it is needed, heat exchangers support heating, cooling, heat rejection, and energy recovery. Heat exchanger applications range from air-handling equipment to data center cooling.
The basic idea is simple, but performance depends on the exchanger design, flow arrangement, materials, surface area, and operating conditions.
What Is a Heat Exchanger?
A heat exchanger transfers heat between two fluids, or between a fluid and an airstream, while controlling how those media move through the system.
In many designs, the media never mix. One fluid travels inside tubes or across one side of a plate while another fluid or air passes along the other side. Heat moves through the material between them.
This process can serve several purposes. A heat exchanger may:
- Absorb heat to cool air
- Reject heat from refrigerant
- Warm an airstream
- Recover energy from exhaust air
- Remove process heat from equipment
Coilmaster manufactures custom heat exchangers for HVAC, refrigeration, and industrial applications.
How Does Heat Move Through a Heat Exchanger?
Heat naturally moves from a warmer area to a cooler area. The temperature difference between two media drives that transfer.
A basic heat exchanger cycle follows four steps. First, the warmer medium enters the exchanger. Next, heat moves from that medium to the heat-transfer surface. Thermal energy then conducts through the tube or plate wall. Finally, the cooler medium absorbs the heat on the other side.
Two heat-transfer methods do most of the work in typical HVAC coils: conduction and convection. Radiation can also transfer heat, but it usually plays a smaller role in standard coil applications.
Surface area matters as well. A larger effective heat-transfer surface gives thermal energy more area to move through. That is why many air-side coils use rows of thin metal fins around the tubes. The fins increase the surface area exposed to moving air without requiring a much larger coil.
Conduction Through the Heat-Transfer Surface
Conduction is the movement of heat through a solid material. In a finned-tube coil, heat passes through the metal tube wall between the fluid inside the tube and the air outside it.
For example, chilled water flowing through a cooling coil absorbs heat from warm air moving across the coil. The air and water stay separate, but the metal tubes provide a path for conducting heat.
Tube material, wall thickness, cleanliness, and contact with fins all influence this process.
Convection Between the Fluid, Tubes, Fins, and Air
Convection occurs when heat moves between a surface and a moving fluid or gas. Fans and pumps often create this movement in HVAC and refrigeration equipment.
A fan may push air across a finned coil while a pump moves water or glycol through the tubes. As the fluids move, they carry heat toward or away from the transfer surface.
Fins increase the metal surface area in contact with the air. This helps the coil exchange more heat within a practical footprint.
How Does Flow Arrangement Affect Heat Exchanger Performance?
The direction the two media move can affect heat exchanger performance. Three common arrangements are parallel flow, counterflow, and crossflow.
In parallel flow, both media travel in the same general direction. They enter from the same end and become closer in temperature as they move through the exchanger.
In counterflow, the two media move in opposite directions. This arrangement can maintain a stronger temperature differential across more of the exchanger. Counterflow can improve thermal performance in many designs.
In crossflow, the media move across each other at an angle, often close to 90 degrees. Finned-tube HVAC coils commonly use this type of arrangement because air travels across the coil face while refrigerant, water, glycol, or steam travels through the tubes.
Flow arrangement affects more than outlet temperature. Engineers also consider pressure drop, airflow, and the temperature approach the system requires.
What Types of Heat Exchangers Are Common in HVAC and Industrial Systems?
Many types of heat exchangers use the same basic principles but package the heat-transfer surface differently. The best design depends on:
- The fluids involved
- Capacity
- Pressure
- Temperature
- Space
- Cleaning needs
- Application
Finned-Tube Coils
Finned-tube coils are common in HVAC, refrigeration, and process cooling. Fluid flows through the tubes while air moves across fins attached to them. The fins add air-side surface area, which improves heat transfer.
Our professionals custom-configure coils around application requirements. Tube diameter, wall thickness, fin material, and protective coatings can be selected to support the required needs and designs of the application.
Plate and Shell-and-Tube Heat Exchangers
Plate heat exchangers use a series of thin plates to create a large heat-transfer area in a compact space. Separate fluid channels allow heat to move through the plates while keeping the fluids apart.

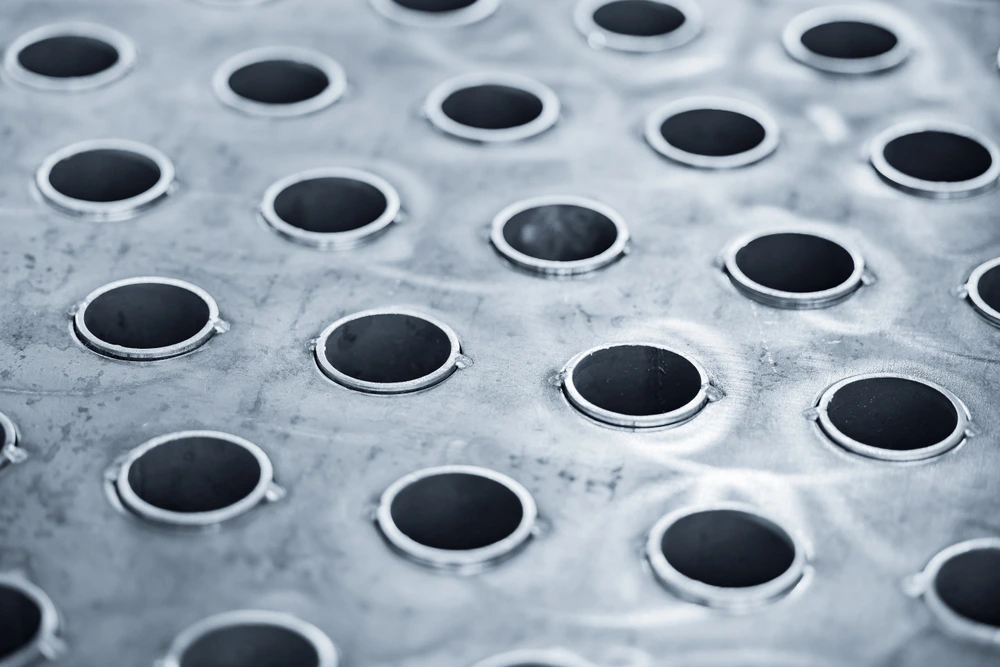

Shell-and-tube heat exchangers use tubes inside an outer shell. One fluid flows through the tubes while another moves around them inside the shell. Their robust construction makes them common in demanding industrial applications, including systems with higher pressures or temperatures.
Each design has different space, service, pressure-drop, and maintenance needs. Choose carefully based on your actual operating conditions.
Air-Cooled Heat Exchangers, Condensers, and Fluid Coolers
Air-cooled systems reject heat to outdoor air instead of transferring it to another water loop. Fans pull or push ambient air across heat-transfer surfaces while refrigerant or process fluid moves through the coil.
Air-cooled condensers reject heat from refrigerant. Fluid coolers remove heat from closed-loop fluids such as water or glycol. We also offer a broader range of fluid cooler and remote condenser solutions for industrial plants, supermarkets, and process applications.
These systems can reduce water use compared with evaporative heat-rejection equipment. Air-cooled systems can also be configured around motors, circuiting, and project conditions.
Where Are Heat Exchangers Used?
Heat exchangers appear anywhere a system needs to add, remove, reject, or recover heat.
In commercial HVAC equipment, coils heat or cool air moving through air-handling units. Chilled-water and evaporator coils absorb heat, while hot-water and steam coils add heat to an airstream. Condenser coils reject heat from refrigerant as part of the refrigeration cycle.
Supermarkets rely on heat exchangers in refrigerated cases, coolers, freezers, and other refrigeration equipment. Industrial facilities use them for process cooling and equipment cooling, heat rejection, and temperature control.
Data centers present another growing use. Servers and other computing equipment create high heat loads that must be removed continuously. Heat exchangers can support air cooling, liquid cooling, and heat rejection. Coilmaster’s coolant distribution unit is designed for modern data centers and connects liquid-cooling loops with heat-exchange systems for controlled coolant distribution.
Heat exchangers also support energy recovery. Coilmaster’s HRM energy recovery heat pipes use passive phase-change technology to move heat between airstreams without mixing them. This can reduce heating or cooling loads in ventilation systems.
The location of a heat exchanger depends on the system. In an air-handling unit, the coil may sit directly in the supply-air path. In refrigeration equipment, evaporator and condenser heat exchangers are placed at different points in the refrigerant circuit. In a fluid cooler, the heat-transfer coil sits inside an outdoor unit where fans move ambient air across it. Data center systems may use several heat exchangers across the cooling chain, from equipment-side liquid loops to facility-side heat rejection.
What Factors Determine Heat Exchanger Performance?
Heat exchanger performance depends as much on operating conditions as on the basic exchanger type. Engineers need to match the design to the load, fluids, available space, and system limits.
Important design factors include:
- Entering and leaving temperatures
- Airflow and fluid flow rates
- Required heating or cooling capacity
- Allowable air-side and fluid-side pressure drop
- Fluid or refrigerant type
- Tube, fin, casing, and coating materials
- Available footprint and connection locations
- Fouling, corrosion, and environmental exposure
- Cleaning and maintenance access
The temperature differential directly affects heat transfer. A greater difference between the warm and cool media generally creates a stronger driving force for heat movement. Surface area, fluid velocity, airflow, and thermal resistance also affect the final capacity.
Coil geometry can be adjusted for the application. Tube diameter and wall thickness, fin material, fin spacing, and coatings all influence performance and durability.
Air-side pressure drop is another important concern because higher resistance can increase fan energy. Coilmaster’s oval tube technology is designed to reduce air-side pressure drop compared with conventional round-tube arrangements in suitable applications. Lower resistance can help engineers manage airflow and fan energy while meeting thermal requirements.
How Do Engineers Select the Right Heat Exchanger?
Selecting a heat exchanger starts with defining what the system needs to accomplish. Engineers first establish the heat load and the required entering and leaving temperatures. They also identify the working fluids and expected flow rates.
Next, the design must fit the system limits, which consists of:
- Allowable pressure drop
- Available airflow
- Physical dimensions
- Connection locations
- Operating pressure
- Material compatibility
- Corrosion exposure
- Maintenance access
Check the selected exchanger against actual operating conditions rather than a single ideal design point. HVAC and refrigeration equipment may operate across changing outdoor temperatures, loads, fan speeds, and fluid conditions.
Custom selection is especially important for OEM and replacement coils because dimensions and performance targets can vary widely. A replacement also needs to fit existing equipment without creating new airflow, piping, or service problems.
Coilmaster supports specification and selection with engineering expertise and proprietary tools such as EZCoil and VirtuaLab. These resources help evaluate coil configurations, performance, and project requirements before manufacturing.
Why Do Maintenance and Cleanliness Matter?
A heat exchanger needs clean surfaces and proper airflow or fluid flow to keep transferring heat effectively. Dirt on fins, scale inside tubes, or other fouling can add thermal resistance and reduce capacity. As fouling builds, pressure drop can also rise. Fans or pumps may need to work harder, and the system may use more energy while delivering less heating or cooling.
Inspection and cleaning schedules should match the application. A coil exposed to outdoor debris, grease, dust, or corrosive air may need more frequent attention than one operating in a clean indoor environment.
Replacement planning matters too. An existing coil will eventually fail or no longer meet performance needs. Accurate dimensions, connection details, and capacity requirements help engineers match the replacement and limit equipment downtime.
Service life also varies widely. No single lifespan applies to every heat exchanger. Materials, water or refrigerant quality, corrosion exposure, and maintenance all affect how long a unit remains reliable. Correct selection and routine inspection help preserve performance over time.
Work With Coilmaster on Custom Heat Transfer Solutions
We have served OEM and aftermarket customers in the commercial HVAC and refrigeration industry for more than 25 years. Our U.S.-based manufacturing and nationwide engineering support help customers develop custom heat transfer products for a wide variety of commercial, industrial, and residential applications.
Solutions include custom heat exchanger coils, air-cooled condensers, fluid coolers, energy recovery products, and data center cooling equipment. Our company also supports OEM and replacement projects where performance, dimensions, and lead time must align with the application.
Are you selecting a new heat exchanger or replacing an existing coil? Send us your operating conditions, specifications, or drawings. Contact the Coilmaster team to discuss your system with an engineer and identify a heat transfer solution built around your requirements.
